Description
The value-packed introduction to true Home Cinema

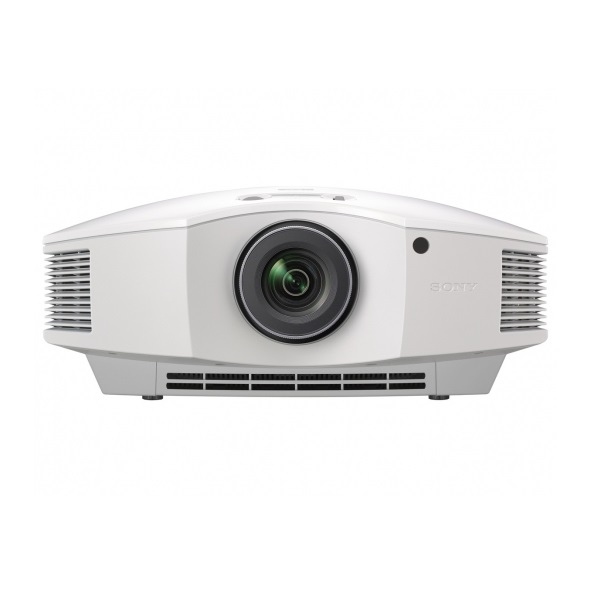

Expand your horizons beyond the TV screen – and create a spectacular cinematic experience in your own home. Available in a choice of black or white finishes to flatter any interior, the value-packed VPL-HW45ES Home Cinema projector lets you enjoy your favourite entertainment at its best in 2D or 3D.
Made for movie lovers, it’s packed with technology developed for our professional Digital Cinema projectors, including SXRD panels and our own Advanced Reality Creation upscaling technology for fabulously detailed Full HD images. Generous 1,800 lumens brightness ensures that films and TV shows look clear and sharp, even in daylit living rooms.
Compact and easy to set up, the VPL-HW45ES fits neatly into any home theatre or living room, with quiet fan noise that won’t disturb the show and a front-facing exhaust port for extra installation flexibility. The projector’s long-lasting lamp is rated for an extra-generous 6,000 hours operation, for fewer interruptions and reduced maintenance costs.
Specification
- Display System
Display System SXRD panel, projection system - Display device
Size of effective display area : 0.61” x 3
Number of pixels : 6,220,800 (1920 x 1080 x 3) pixels - Projection lens
Focus : Manual
Zoom : Manual (Approx. x1.6)
Lens shift : Manual, Vertical: +/- 71%, Horizontal: +/- 25% - Light source
Type High-pressure mercury lamp
Wattage 215 W type - Recommended lamp replacement time*1
Lamp mode: Low 6000H - Filter cleaning / replacement cycle (Max.)*1
Filter cleaning / replacement cycle (Max.) : Same time as the lamp replacement is recommended - Screen size
Screen size 40” to 300” (1.02 m to 7.62 m) - Light output
Lamp mode: High 1800lm - Color light output
Lamp mode: High 1800 lm - Displayable scanning frequency
Horizontal 19 kHz to 92 kHz
Vertical 48 Hz to 92 Hz - Display resolution
Computer signal input : Maximum display resolution: 1920 x 1080 dots (HDMI Input only)
Video signal input : 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i
The following items are available for HDMI input only.
1080/60p, 1080/50p, 1080/24p - OSD language
OSD language : 17-languages (English, Dutch, French, Italian, German, Spanish, Portuguese, Russian, Swedish, Norwegian, Japanese, Simplified Chinese, Traditional Chinese, Korean, Thai, Arabic, Polish) - INPUT OUTPUT (Computer/Video/Control)
HDMI1 / HDMI2 : Digital (RGB/Y Pb/Cb Pr/Cr)
REMOTE : RS-232C connector: D-sub 9-pin (female)
IR IN : Mini Jack
USB : DC 5V, Max. 500 mA - Acoustic noise
Lamp mode: Low 22 dB - Operating temperature / Operating humidity
Operating temperature / Operating humidity 5°C to 35°C (41°F to 95°F) / 35% to 85% (no condensation) - Storage temperature / Storage humidity
Storage temperature / Storage humidity -20°C to +60°C (-4°F to +140°F) / 10% to 90% (no condensation) - Power requirements
Power requirements AC 100 V to 240 V, 3.1A to 1.3 A, 50 Hz / 60 Hz - Power consumption
Power consumption : Max 310W - Power Consumption (Standby Mode)
Power consumpiton (Standby Mode) 0.4 W - Standby Mode / Networked Standby Mode Activated
Standby Mode / Networked Standaby Mode Activated : After about 10 minutes - Dimensions (W x H x D)
Approx. 407.4 x 179.2 x 463.9 mm (16 1/8 x 7 1/8 x 18 3/8 inches) - Mass
Mass Approx. 9 kg (20 lb 1oz) - Supplied accessories
RM-PJ28 Remote Commander (1)
Size AA (R6) Manganese Batteries (2)
AC Power Cord (1)
Lens Cap (1)
Operating Instructions (CD-ROM) (1)
Quick Reference Manual (1)
- Optional Accessories
LMP-H210
